Payment & Shipping Terms:
|Outer Material:||Full Metal Plate Structure||Pipeline:||100% Solid Copper|
|Compressor:||Danfoss / Copeland||Refrigerant:||R417a Eco Friendly / R407 / R22|
|Power Supply:||220V - 480 V, 3 N / 50 / 60 Hz||Plenum Box (H):||0.6 M - 1.5 M|
Copeland Compressor AC Industrial Refrigerated Air Conditioning
Ideally for Tent Event Functions, featuring:
1: Air conditioner for outdoor event, exhibition, wedding party, trade show
2: Function: Cooling, heating
3: Life Span: 8-9 years
4: Noise: 65-70 db
5: Temperature Resistance: 15℃~60℃, operating efficiently in a harsh environment with excellent air flow.
6: Anti corrosion, dustfree, the design works for ABS / PVC / Glass wall
7: Good refrigerant system in case of any leaking
8: Safety shutoff.
9: Completely assembled, no additional installation due to integrated indoor and outdoor unit.
10: Requested less spare parts than Chillers, low cost spending on the maintenance.
11: Easy to transport and lifting.
|Item||Input Power||Cooling Capacity||Heating Capacity||Cooling Area||Air Volume||AC Size (L*W*H)|
|15 HP||12.75 KW||43.5 KW||52.5 KW||120-180 ㎡||4400 CFM||2.0*1.1*1.9 M|
|25 HP||21.25 KW||72.5 KW||87.5 KW||200-300 ㎡||7400 CFM||2.5*1.1*2.1 M|
|30 HP||25.5 KW||87 KW||105 KW||240-360 ㎡||8800 CFM||2.7*1.1*2.35 M|
|36 HP||30.6 KW||104.4 KW||126 KW||290-435 ㎡||10600 CFM||2.7*1.1*2.35 M|
|50 HP||42.5 KW||145 KW||175 KW||400-600 ㎡||15000 CFM||3.0*1.1*2.4 M|
Connection with Tents
1: Flexible installation which allow the ac can be placed outside the tent or, half inisde and half outside.
2: This design allows to be connected with central ducting, or with the plenum box blowing cold air directly.

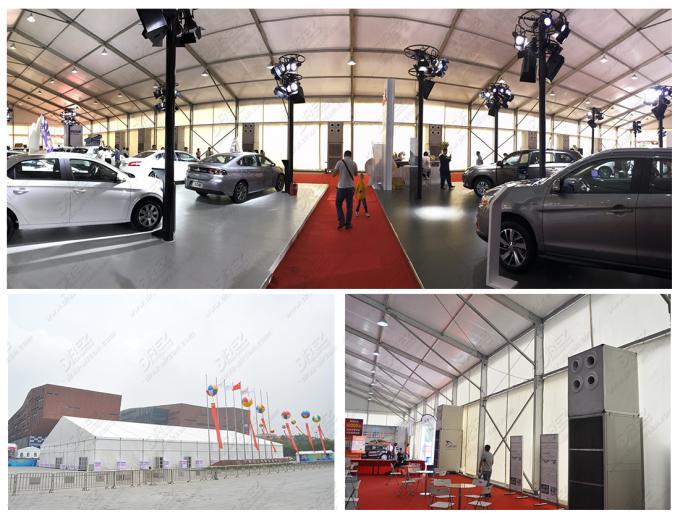

See below photos for more instructions
Core Components Details Features
1. OEM/ODM service.
2. 1 year Warranty. Engineers are available to provide technical support overseas.
More About Us:
Guangzhou Drez Exhibition Co., Ltd is a leading outdoor air conditioning manufacturer in China.
We’re specializing in designing, producing, marketing and selling of different kinds of air conditioners, as well as offering turnkey solutions.
Its factory based in Panyu Guangzhou.
With more than 20 years experiences providing AC and our designs work with any tented or temporary structures and exhibitions.
Our experienced team provides bespoke solutions which meet our client’s consistency and quality of delivery the world over.
Contact Person: Sales Group 2
